640×512 50mm ≤18mk 1000yd LRF

Sale price$2,999.00

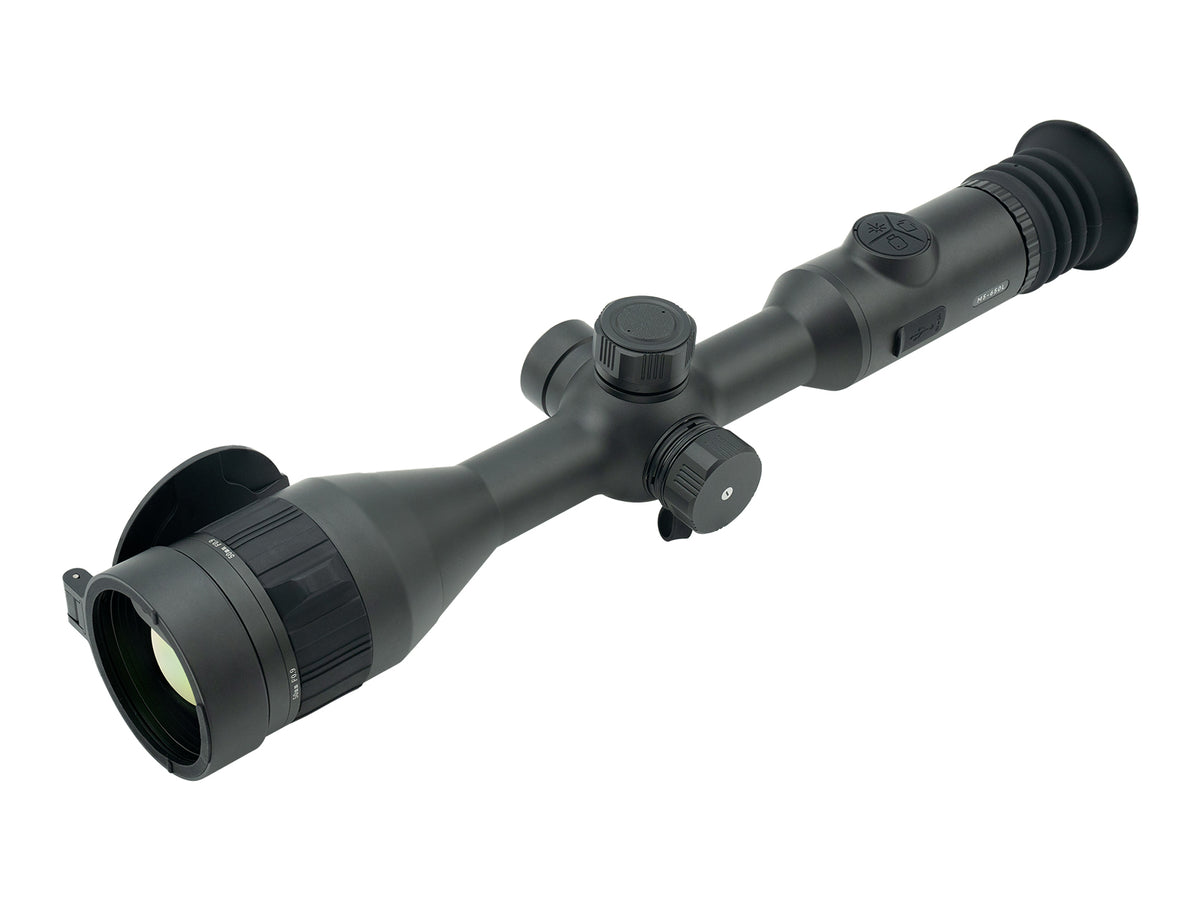

Meet the Falcon M5-650L thermal scope with a 640x512 sensor, 2.8x optical zoom, 1000yd rangefinder, 1920×1080 display and 8-hour power.

Key Features:

  • High-sensitivity imaging: 640x512, 12 μm thermal sensor with <=18 mK NETD and a smooth 60 Hz refresh rate.
  • Long-range optics: 50mm objective, 2.8x base magnification, up to 20.8x digital zoom and >2,500m detection range.
  • Streamlined ranging: 1000yd laser rangefinder integrated into the objective for a clean, practical profile.
  • Detailed viewing: 1920x1080 OLED display, AI image enhancement and five color palettes.
  • Extended operation: dual 18650 batteries provide 7000mAh capacity and >=8 hours of expected runtime.
  • Field functionality: IP67 protection, ≥10,000 J recoil resistance, onboard photo/video, Wi-Fi and an integrated menu dial.
See More

Purchase
Overview Specs FAQs Reviews
$2,999.00
Add to Cart
Buy Now

M5-650L

640-class thermal riflescope with a high-resolution OLED display, 2.8× base magnification, extended battery capacity, and built-in rangefinding for long nights in the field.

50mm Objective — Built-in Rangefinder

The rangefinder is integrated into the objective housing, giving hunters distance data without adding an external module to the rifle.

640×512 Sensor — Proven Core

A 12μm / ≤18mK thermal core in a larger-body platform for hunters who want the same image foundation with longer runtime.

ㅤ

60Hz Refresh — No Lag, No Smear

Keep moving hogs, coyotes, and other targets easier to follow with a smoother image during scanning and tracking.

Drag

1920×1080 OLED. 0.49-inch display. More detail for positive identification.

The high-resolution display helps hunters read shape, movement, and target detail more clearly at distance.

0.49" OLED, 1920×1080

5 Color Modes

Falcon OpticFalcon Optic
Falcon OpticFalcon Optic
Falcon OpticFalcon Optic
Falcon OpticFalcon Optic
Falcon OpticFalcon Optic

Range it, hold with confidence.

The built-in rangefinder and ballistic calculator help simplify distance, holdover, and reticle setup in the field, with multiple weapon profiles and reticle options.

Auto ballistic calculation

Impact Resistance Test

Waterproof Test

Temperature Cycling Test

Aging Test

Power for long sits, long drives, and late recoveries.

Controls made for the field.

Built-in Objective Rangefinder

Silicone-Wrapped Focus Ring

7,000mAh Battery

Integrated Menu Knob

Built-in WiFi

Built-in Objective Rangefinder

Silicone-Wrapped Focus Ring

7,000mAh Battery

Integrated Menu Knob

Built-in WiFi

Built-in Objective Rangefinder

Silicone-Wrapped Focus Ring

7,000mAh Battery

Integrated Menu Knob

Built-in WiFi

Specification

Sensor Specifications
Sensor Resolution (pixel)
640×512
Sensor Pixel Size
12μm
NETD
≤18mK
Objective Lens (mm)/Aperture
50mm / F0.9
Field-of-View
8.8°×6.6°
Optical Magnification (x)
2.8
Digital Zoom (x)
2.8x,3.8x,4.8x,5.8x,6.8x,7.8x,8.8x,9.8x,10.8x,11.8x,12.8x, 13.8x,14.8x,15.8x,16.8x,17.8x,18.8x,19.8x,20.8x
Detection Range
＞2500m
Laser Rangefinder Range
1000yd
Display Specifications
Display Type/Resolution)
1920×1080
Frame Rate（Hz)
60Hz
Color Mode
White Hot · Black Hot · Red Hot ·High Contrast · Low Light · Fusion
Reticle Design Options
10
Reticle Color Options
5
Multiple Gun Profiles
10
Battery Power Supply
Battery Type
7000mAh/18650×2
Expected Battery Runtime
8H
External Power Supply Capable
Yes
Start-Up Time/Cold Start
7s
Start-Up Time/Power Saver Mode
7s
Product Specifications
Weight (w/o Mount & Battery)
1037g±5g
Dimensions
380×88×83.3mm
Operating Temperature
-20℃~+50℃
Recoil Resistance (J)
10000J
Waterproof Rating
IP67
See More

Frequently Asked Questions

What sensor and display are used in the M5-650L thermal scope?

The M5-650L pairs a 640x512, 12 um thermal sensor with <=18 mK NETD and a 1980x1080 OLED display.
What magnification and detection range does the M5-650L thermal scope offer?

Its 50mm objective provides 2.8x base magnification, digital zoom up to 20.8x and a thermal detection range beyond 2,500m.
How is the laser rangefinder integrated into the M5-650L thermal scope?

The 1,000yd laser rangefinder is integrated into the objective assembly, helping maintain a clean and practical scope profile.
How long does the M5-650L thermal scope operate on battery power?

Two replaceable 18650 batteries provide 7000mAh total capacity and at least 8 hours of expected runtime. External power is also supported.
Can the M5-650L thermal scope record and share thermal images?

Yes. It includes onboard photo and video capture, plus Wi-Fi for mobile image sharing and remote control.
