640×512 35mm ≤18mk 1000yd LRF

Sale price$1,899.00

Choose the M3-635L thermal rifle scope for a 640x512 sensor, 35mm lens, 1000yd laser rangefinder, smart ballistics, Wi-Fi and rugged IP67 protection.

Key Features:

  • Sensitive thermal core: 640x512 resolution, 12 μm pixels, <=18 mK NETD and a fluid 50 Hz refresh rate.
  • Wide-area observation: 35mm objective, 12.5 x 10 degree field of view, 2.0x base magnification and up to 8x digital zoom.
  • Long-distance capability: >2,500m detection range and an integrated 1000yd laser rangefinder.
  • Smart aiming tools: automatic ballistic calculation, 10 reticle designs and 10 firearm profiles.
  • Capture and share: onboard photo/video recording and Wi-Fi connectivity for mobile viewing and control.
  • Rugged and compact: IP67 protection, ≥10,000 J recoil resistance, 610g body weight and about 5 hours of runtime.
See More

Purchase
Overview Specs FAQs Reviews
$1,899.00
Add to Cart
Buy Now

M3-635L

640-class thermal riflescope with a 35mm objective and practical field performance for hunters who want value without dropping to a low-resolution entry setup.

35mm Objective

The 35mm objective balances field of view, size, and useful identification distance for hog, predator, and feeder-area hunting.

640×512 Thermal Core — Practical Hunting Setup

A 12μm / ≤18mK thermal core gives the M3 a practical image foundation for hunters who want useful performance without moving into premium pricing.

ㅤ

50Hz Refresh

Smooth image motion for scanning and tracking at night.

Drag

1024×768 OLED for a compact field setup.

Reliable OLED panel. The industry standard resolution that gets the job done.

6 Color Modes

Falcon OpticFalcon Optic
Falcon OpticFalcon Optic
Falcon OpticFalcon Optic
Falcon OpticFalcon Optic
Falcon OpticFalcon Optic
Falcon OpticFalcon Optic

Range it, hold with confidence.

Built-in ballistic calculator. 1,000-yard laser rangefinder locks on — the scope computes bullet drop automatically.

Auto ballistic calculation

Impact Resistance Test

Waterproof Test

Temperature Cycling Test

Aging Test

18650 battery lasts up to 5 hours

Controls made for the field.

5Hz Laser Rangefinder

Built-in Recording

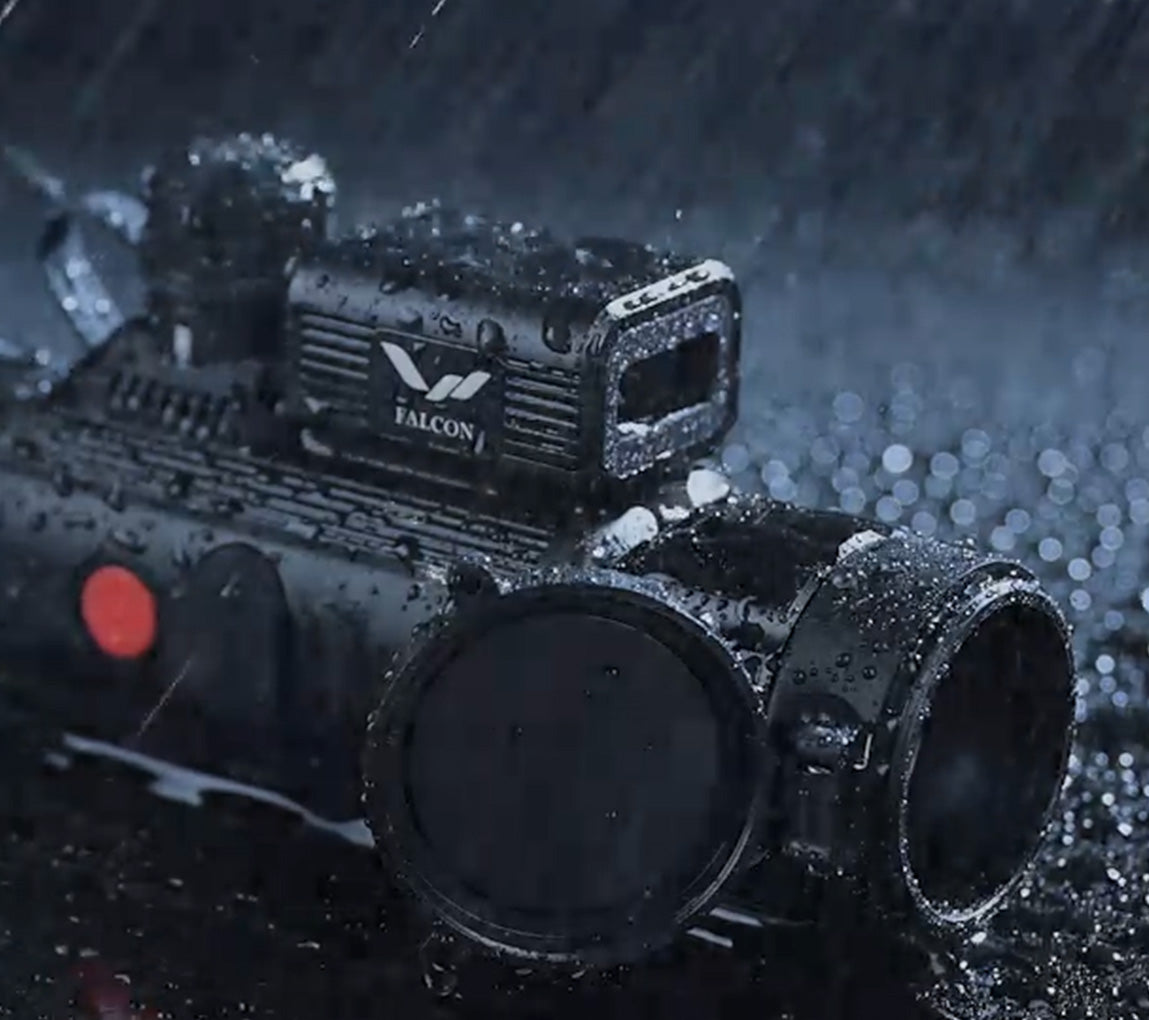

IP67 Rated

Built-in WiFi

5Hz Laser Rangefinder

Built-in Recording

IP67 Rated

Built-in WiFi

5Hz Laser Rangefinder

Built-in Recording

IP67 Rated

Built-in WiFi

Specification

Sensor Specifications
Sensor Resolution (pixel)
640×512
Sensor Pixel Size
12μm
NETD
≤18mK
Objective Lens (mm)
35mm F1.0
Field-of-View
12.5°×10°
Optical Magnification (x)
2
Digital Zoom (x)
1x,1.5x,2x,2.5x,4x,6x,8x
Detection Range
＞2500m
Laser Rangefinder Range
1000yd
Display Specifications
Display Type/Resolution)
1024×768
Frame Rate（Hz)
50Hz
Color Mode
White Hot · Black Hot ·Red Hot · High Contrast · Low Light · Fusion
Reticle Design Options
10
Reticle Color Options
5
Multiple Gun Profiles
10
Battery Power Supply
Battery Type
18650 /3500mAh
Expected Battery Runtime
5H
External Power Supply Capable
Yes
Start-Up Time/Cold Start
7s
Start-Up Time/Power Saver Mode
7s
Product Specifications
Weight (w/o Mount & Battery)
610g ±5g
Dimensions
220.2×65.8×86.2mm
Operating Temperature
-20℃~+50℃
Recoil Resistance (J)
10000J
Waterproof Rating
IP67
See More

Frequently Asked Questions

What thermal sensor is used in the M3-635L thermal scope?

The M3-635L uses a 640x512 sensor with 12 μm pixels, <=18 mK NETD and a 50 Hz refresh rate for sensitive, smooth imaging.
What field of view and magnification does the M3-635L thermal scope provide?

Its 35mm lens delivers a 12.5 x 10 degree field of view and 2.0x base magnification, with digital zoom settings up to 8x.
How many reticle options does the M3-635L thermal scope provide?

It includes 10 reticle designs and three reticle color options.
Can the M3-635L thermal scope take photos, record video and use Wi-Fi?

Yes. The scope supports onboard photo and video recording plus Wi-Fi connectivity for sharing the live view and controlling the device.
What battery life and environmental protection does the M3-635L thermal scope offer?

Expected runtime is about 5 hours from a replaceable 3500mAh 18650 battery. The unit is IP67 rated and recoil resistant to 10000J.
